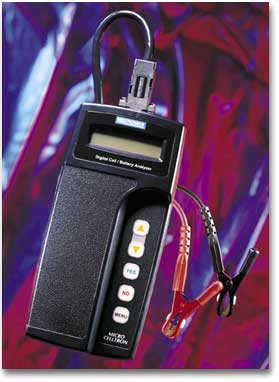

Micro Celltron
The ultimate tool for practical battery management
  • Menu driven test sequence.
  • Safe, simple & accurate operation.
  • Consistent, repeatable on-line testing with no need to discharge batteries.
  • Tests 2-volt through 12-volt batteries.
  • Stores up to 252 consecutive tests.
  • Provides advanced warning of potential battery failures.
  • Passive method to judge battery condition with no damage or strain.
  • Helps prioritize battery replacements for cost-effective system management.
  • Tests intercell strap integrity reported in micro OHMS when using optional IR C060 interface module.
  • Temperature compensated test results.
  • No external power source needed.
  • Portable IR wireless printing and PC transfer.
  • User definable battery reference number storage and fault thresholds

Micro Celltron Kit Includes:

  • IR Printer
  • IR Temperature Sensor
  • Protective Carrying Case
  • Both Clamp and Probe Cables


Product Specifications
Micro Celltron


Model Number:
CTM-300 (Kit)
CTM-100 (Tester Only)

Applications:
Tests individual lead acid cells or monoblocks
(up to 12-volts) in any common configuration.

Operating Range:
100 - 6,000 Mhos/Siemens, single cell
100 - 10,000 Mhos/Siemens, multiple cell
Ranging approximately from 5 Ah to 2000 Ah
1.0-volt to 15-volts DC
For larger batteries - consult Midtronics

Test Data Storage:
Up to 252 consecutive test results can be stored internally

Printing/PC Data Capability:
- A050 IR printer included in CTM-300 test kit,
  test data can be printed for onsite records.
- C060 Accessory interface unit with cable &
  windows compatible software for data
  downloading to PC.

Accuracy:
+/- 2 % across test range

Voltmeter Resolution:
10 mV DC

User Programmable Functions:
- Preset values for up to 31 battery types
- Low voltage alarm setting
- Low conductance warning
- Low conductance failure
- Day/date/time (USA/International)
- Test mode (push button/auto start)

Impact Resistance Tested

No-Ox Grease/Petroleum Product Resistance

Calibration:
Auto calibration prior to every test, no future calibration required



Connectorized Test Cable Options:
- Dual contact clamps
- Dual contact probes
- Custom cables by quotation

Power Requirements:
One 9V alkaline battery

Temperature Compensation Range:
0o C to 32o C
Keyed by operator

Over Voltage Protection:
Fused protection to 60 volts DC

Storage Temperature:
-20°C to 82°C

Over Voltage Protection:
Fused protection to 60-volts DC
Reserved polarity protection

Housing Material:
Sulfuric acid-resistant ABS plastic

Tester Dimensions:
9" x 4" x 2.5"
230 mm x 102 mm x 65 mm

Case Dimensions:
19" x 15.5" x 5"
750 mm x 610 mm x 200 mm

Tester Weight:
1 lbs./500 grams

CTM-300 Test Kit Shipping Weight:
9.5 lbs. / 4 kg
